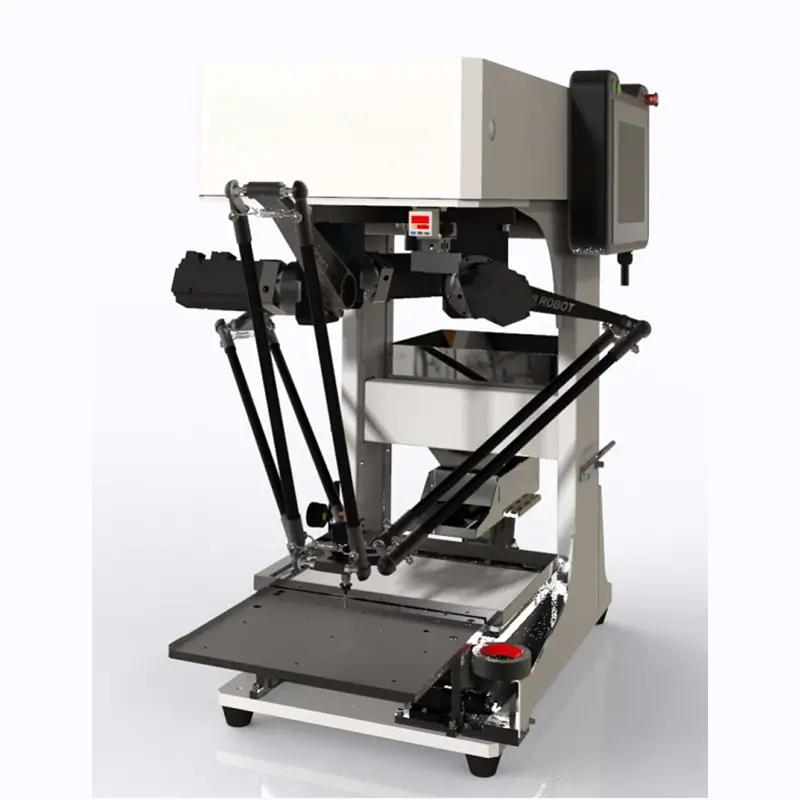

Delta Robot Manufacturers SW-HRD6T-SD-M

SWOER SW-HRD6T-SD-M delta robot is designed for online automatic loading and flexible taping. It delivers high precision with ±0.01mm accuracy and runs at 6000 cycles per hour. It handles parts from 5–50mm with stable performance. Equipped with a vision system and touch teaching control, it is easy to operate and integrate. Share your project needs and get a fast custom solution today.

Odeslat dotaz

Popis
Hodnocení (0)

Delta Robot Manufacturers SW-HRD6T-SD-M

Model: SW-HRD6T-SD-M
NO.	Parameter items	Technical Indicators
1	Effective loading and plating range	300*200mm
2	Adapt to product specifications and sizes	Flat length and width within 5-50mm
3	Repeatability of loading and plating	±0.01mm
4	Peak maximum pick-and-place speed	6000 times/hour
5	Gripping method	The suction clamp brace can be switched freely
6	Number of vibrating plate specifications	360285mm1
7	Řídící systém	SWOER touch teaching system
8	Touch teach-in mode	Handheld movement
9	The number of product recipes can be stored	boundless
10	Number of camera brands	Hikvision 1200W1+130W1
11	Jmenovité napětí	AC220V
12	Rated power	1.5KW
13	Positive air pressure rating	0.2-0.5MP
14	Rated negative pressure	Unlimited
15	Net weight of the device	About 100kg
16	Device dimensions	650950920mm
